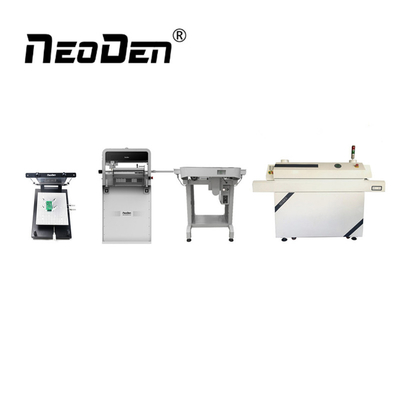

NEODEN SMT Production Line Pick Place Machine Neoden4 Solder Printer FP2636 Reflow Oven T8L Conveyor J08
In this production line, it contains a manual solder paste printer FP2636 +pnp machine NeoDen4 with rails+conveyor J08 +reflow oven T8L.
Pick and Place Machine
NeoDen4 is a flexible pick and place machine for all types of products.
With placement rates of 5,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and high speed to meet the demands of an ever-changing market.
low cost pick and place machine automatic pick and place machine smd placement machine smd mounting machine
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
smt assembly machine smt placement equipment infrared reflow oven soldering iron lead free reflow oven pcb oven
Please kindly note feeders and working stand & monitor are selectable, they will be charged separately.


Features

1. Dual vision system(up-looking and down-looking cameras), identify and calibrate the different components at one time, improves the accuracy of placement from 0201 to BGA;
2. Automatic electric feeders, reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you.
ir reflow oven infrared reflow oven solder paste printer machine solder paste stencil manual stencil printer smt line

Specification
Model
NeoDen4
Machine style
Single gantry with 4 heads
Alignment
Stage Vision
Placement Rate
Vision on: 4,000CPH
Vision off: 5,000CPH
Feeder Capacity
Tape feeder: 48 (all 8mm)
Vibration feeder: 5
Tray feeder: 5
Component Range
Smallest Size: 0201
Largest Size: 32x32mm (Lead Pitch 0.5mm)
Largest Size: 5mm
Rotation
±180°
Placement Accuracy
±0.02mm
X-Y Repeatability
±0.02mm
Board Dimension(mm)
Maximum: 310 x 1500mm(Without waffle Tray), 140 x1500mm(With 1 waffle Tray), 350 x 400mm(Without rails)
Main Control
GUI
Electricity Supply
110V/220V
Power
180W
External Dimensions(mm)
Machine size: 870(L)x680(W)x480(H)
Packing size: 940(L)x740(W)x600(H)
Weight
Net Weight: 60kgs
Gross weight: 80kgs
Solder Printer
Model
FP2636
Max PCB Size
280*380mm
Min PCB Size
10*5mm
Screen Stencil Size
260*360mm
Printing Speed
Labor control
Repeatability
±0.01mm
PCB Thickness
0~20mm
Platform Height
190mm
Positioning Mode
Outside/Reference hole
Fine Adjustment Range
Z-axis ±15mm X-axis ±15mm Y-axis ±15mm
Positioning Pin Size
1mm/1.5mm/2.0mm/2.5mm/3mm
Packing Size
710×500×270mm
N.W./G.W.
12KG/14KG
Reflow Oven
Model
T8L
Length*Width*Height (mm)
2100*700*1280
Packing Size(mm)
2200*800*1280
N.W(KG)
300
Peak Power(KW)
12
Working Power(KW)
5
Input Voltage(V)
220V/380V
Conveyor Width(mm)
300
Standard Height(mm)
20
Max Customized Height(mm)
55
Max Speed of Conveyor (mm)
1200


8 Heating Zones
First/Fifth:Fast preheat zone
Second/Third/Sixth/Seventh:Drying zones
Fourth/Eighth:Soldering zone
Fifth/Sixth/Seventh/Eighth:Bottom side heat zones
(Each zones adapts independent heating/cooling control ways,cooling zone belongs to strong wind refrigerating system.)
Conveyor
Model: J08
Conveyor Length:0.8m
Gross Weight:49KGs
Packing Size:87*72*40cm
Power Supply:220V
